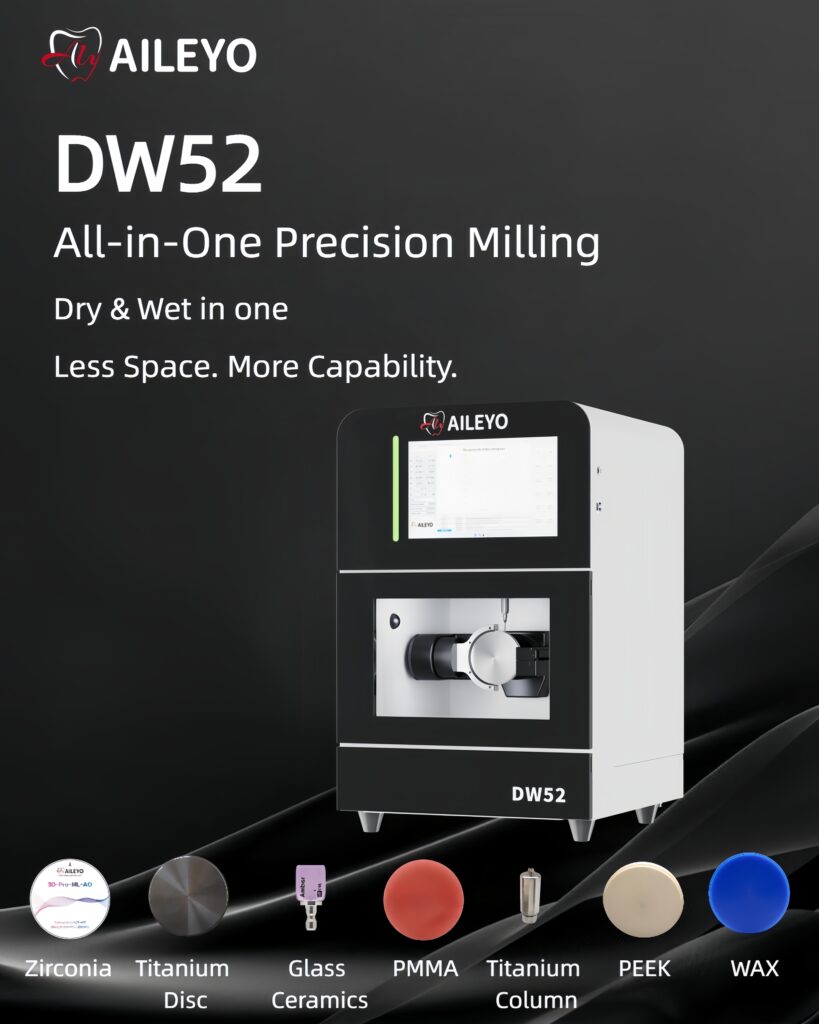

Wet & Dry 5-Axis Milling in a True Desktop Form
Mill zirconia, titanium, glass ceramics, and more — all in one intelligent, self-contained machine. With its cleverly integrated water tank, the DW52 eliminates messy external hoses and pumps, delivering industrial-grade precision and dual-mode flexibility in the cleanest, smallest possible footprint. Advanced automation ensures every job is simply seamless.

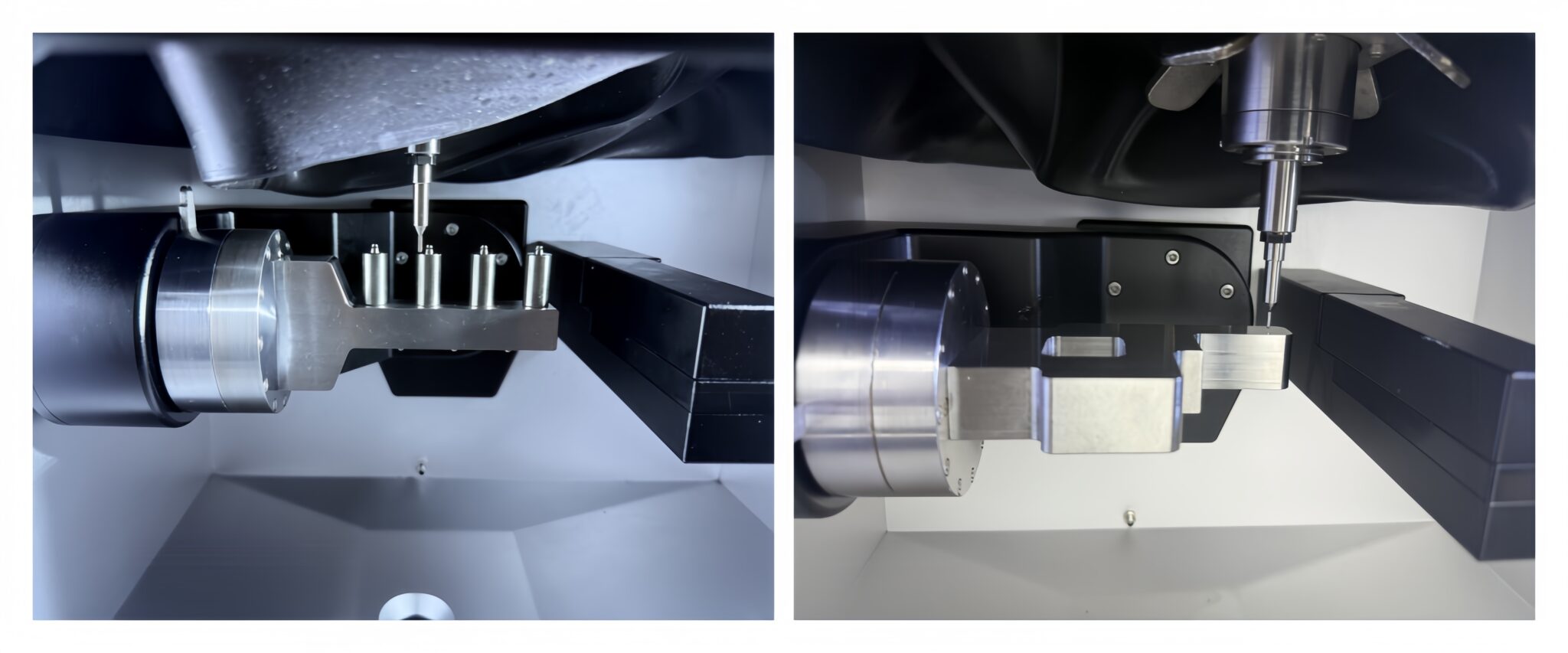

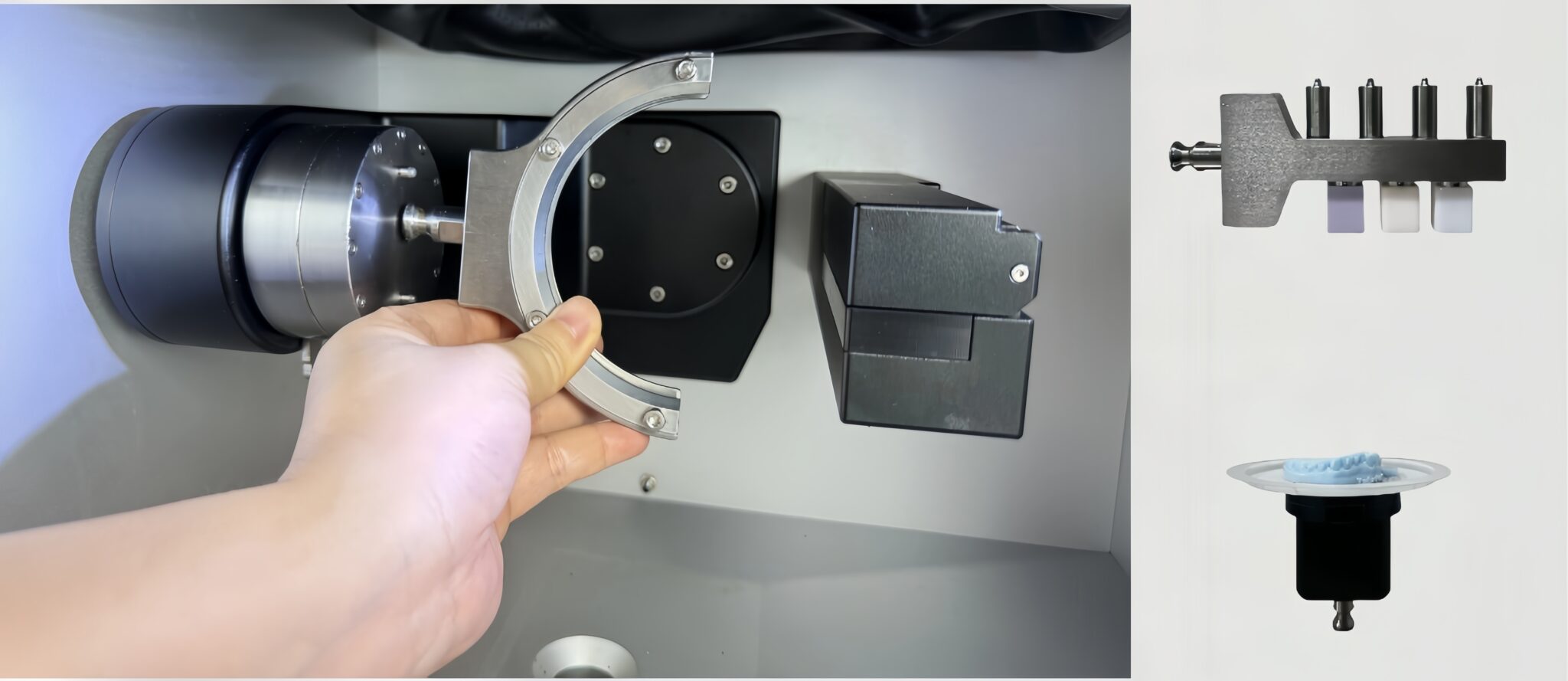

Say goodbye to manual screws. The DW52’s Zero-Point Chuck turns every fixture change into a single, precise click.
Expert Precision, Now Standard.
With the DW52’s auto-calibration, even beginners can achieve expert-level, perfectly fitting interfaces—every single time.

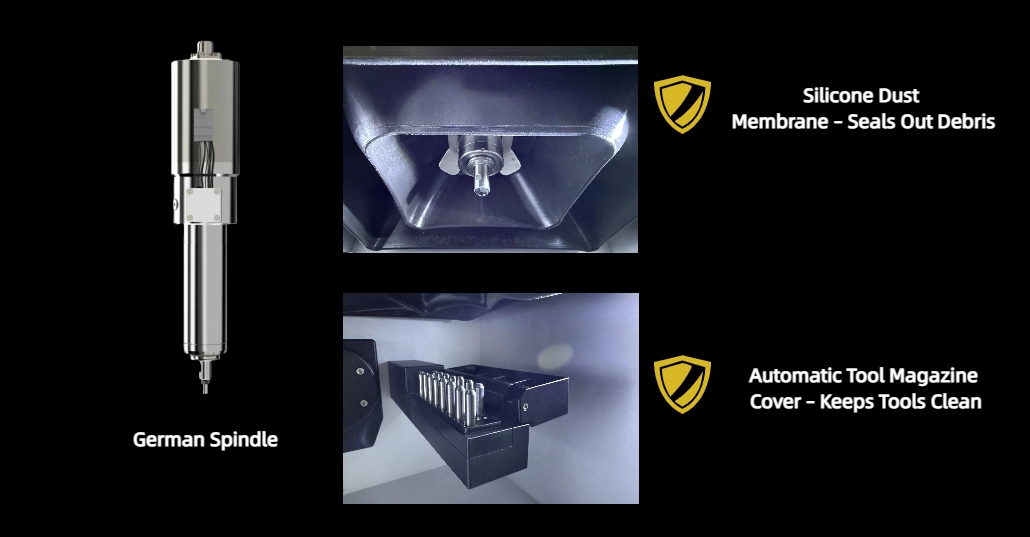

One powerful heart, two unbreakable shields — the DW52 delivers unmatched stability and longevity.
Remote Access, Anytime, Anywhere.
Monitor, diagnose, and adjust your DW52 from any location—ensuring uninterrupted performance.
Small footprint, ideal for labs and clinics.
Rigid aerospace-grade aluminum body ensures stability.
Fully enclosed protective cover prevents dust and extends machine lifespan.
Damping chamber door, built-in PC, and water tank for seamless operation.
True 5-axis simultaneous machining for complex restorations.

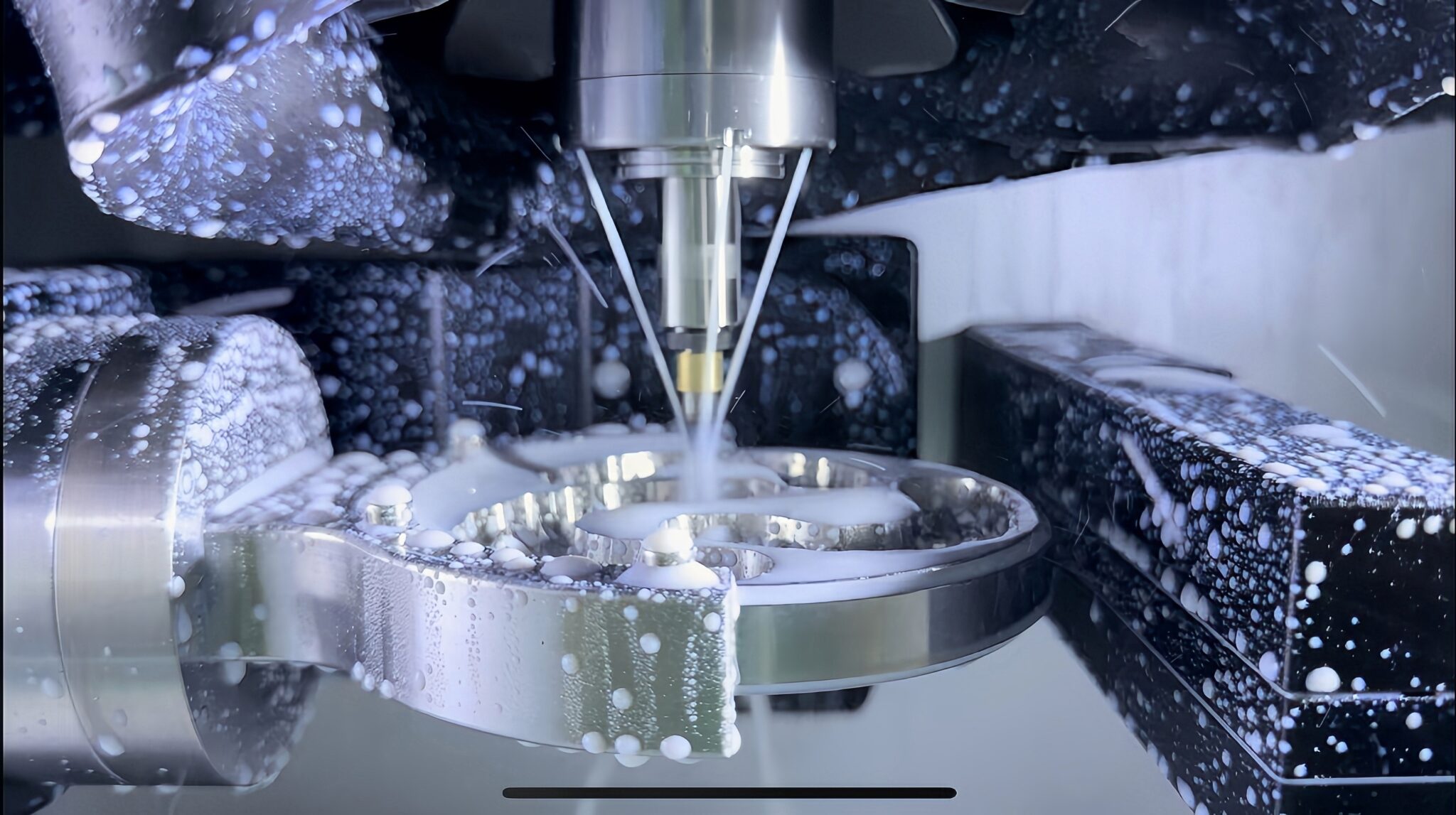

Dry & wet milling in one unit.
High precision with automatic temperature compensation.
Automatic tool changing and calibration for precise, hands-free operation.
Intelligent protective cover reduces dust and extends spindle life.
Intuitive touchscreen with simplified workflows for easy daily use.
Compatible with all major CAD/CAM software and file formats.
Easy integration into existing digital workflows.
Remote diagnostic and service support to minimize downtime.
|
Processing mode |
Dry&Wet |
|
Millable material |
Zirconia, Glass ceramics, Plastics | Wax, PEEK, Composite, Titanium Disc,Pre-milled |
|
Applications |
Crown | Bridge, Veneer, Inlay | Onlay, Abutment, Denture, Screw-retained bridge, Model cast, Occlusal splint, Surgical guide, Implant bar |
|
Power |
100 ~ 240V AC 50/60Hz |
|

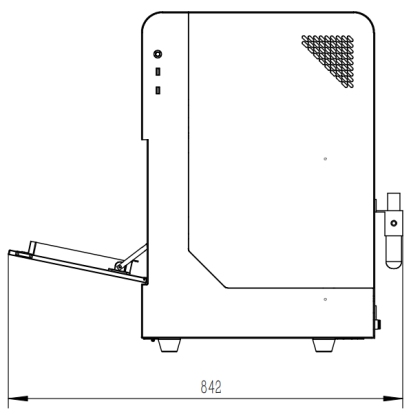

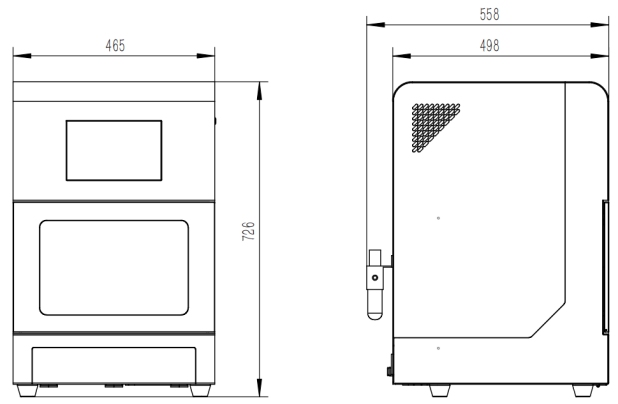

Dimension |
510× 465× 737mm |
|
Weight |
122kg |
|
Air supply pressure |
0.6 ~ 0.8 MPa |
|
Air flow |
66 L/min |
|
Structure parameters |
|
|
Basic construction |
Aluminium |
|
Number of axes |
5 |
|
Rotary axis A-axis |
360° |
|
Rotary axis B-axis |
-110° ~ +30° |
|
Tool |
16 |
|
Spindle |
|
|
Speed |
80,000rpm |
|
Power |
1.37kw |
|
Positioning/Repositioning accuracy |
0.01/ 0.005 mm |
|
Collet |
Φ6 mm |
|
Cooling method |
Water cooling |
