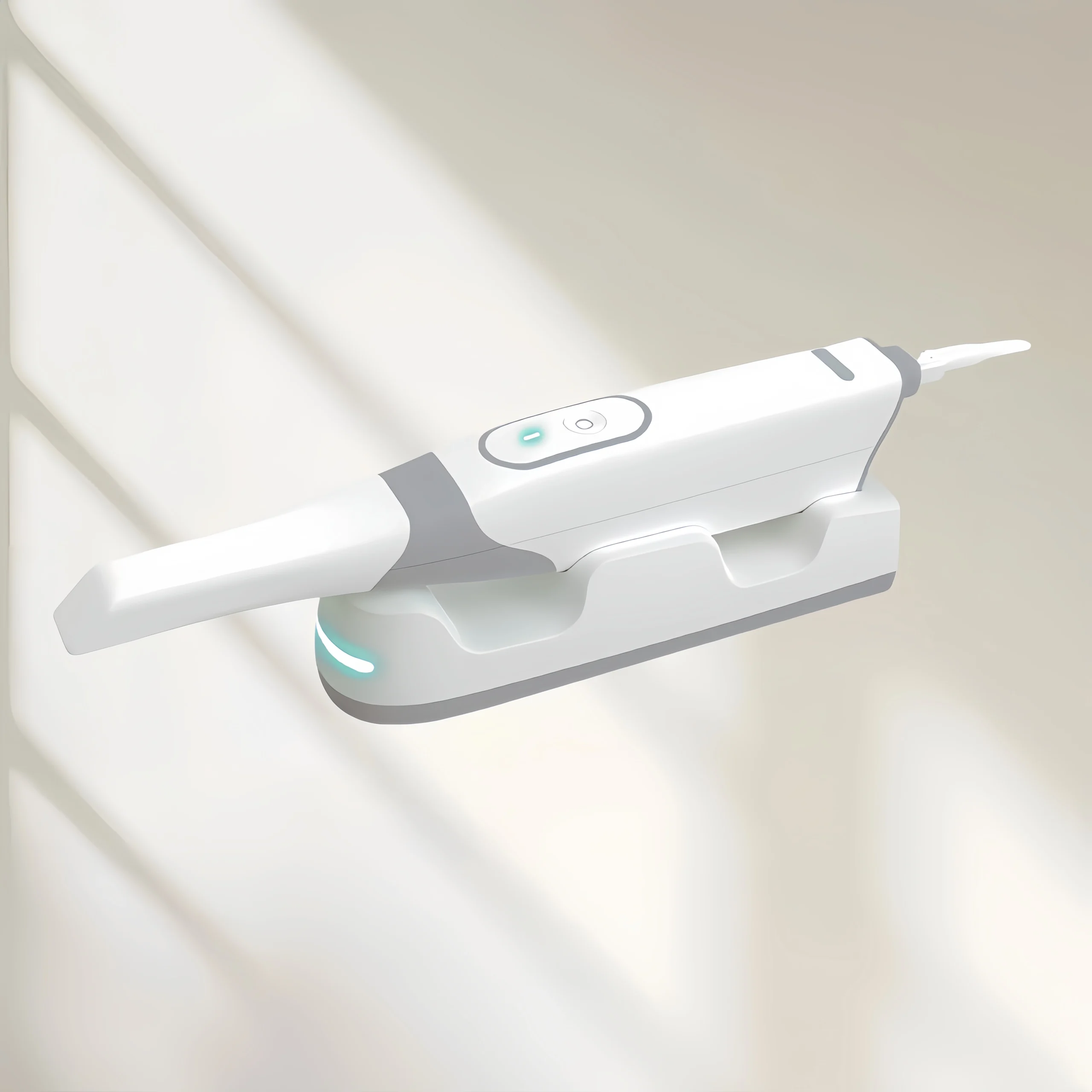

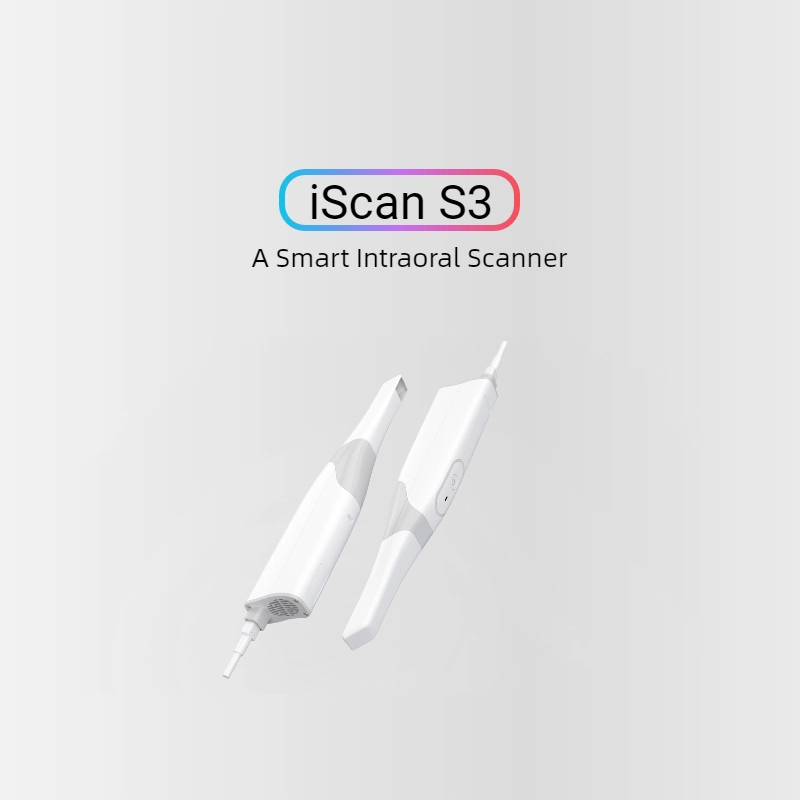

Step into the future of dentistry with the iScan S3

Smart. Simple. Comfortable.

Experience the future of dentistry with iScan S3 — engineered for superior accuracy (<20μm) and remarkable speed (<40s full-arch scan). With AI-powered filtering and intuitive motion control, it delivers cleaner scans with less effort, streamlining your workflow from the very first click. Digitize your practice with confidence, comfort, and efficiency.

20 μm

40 sec/arch

270 g

1.7cm Tip Height

Highlights

Ultra-Fast & High-Precision Scanning

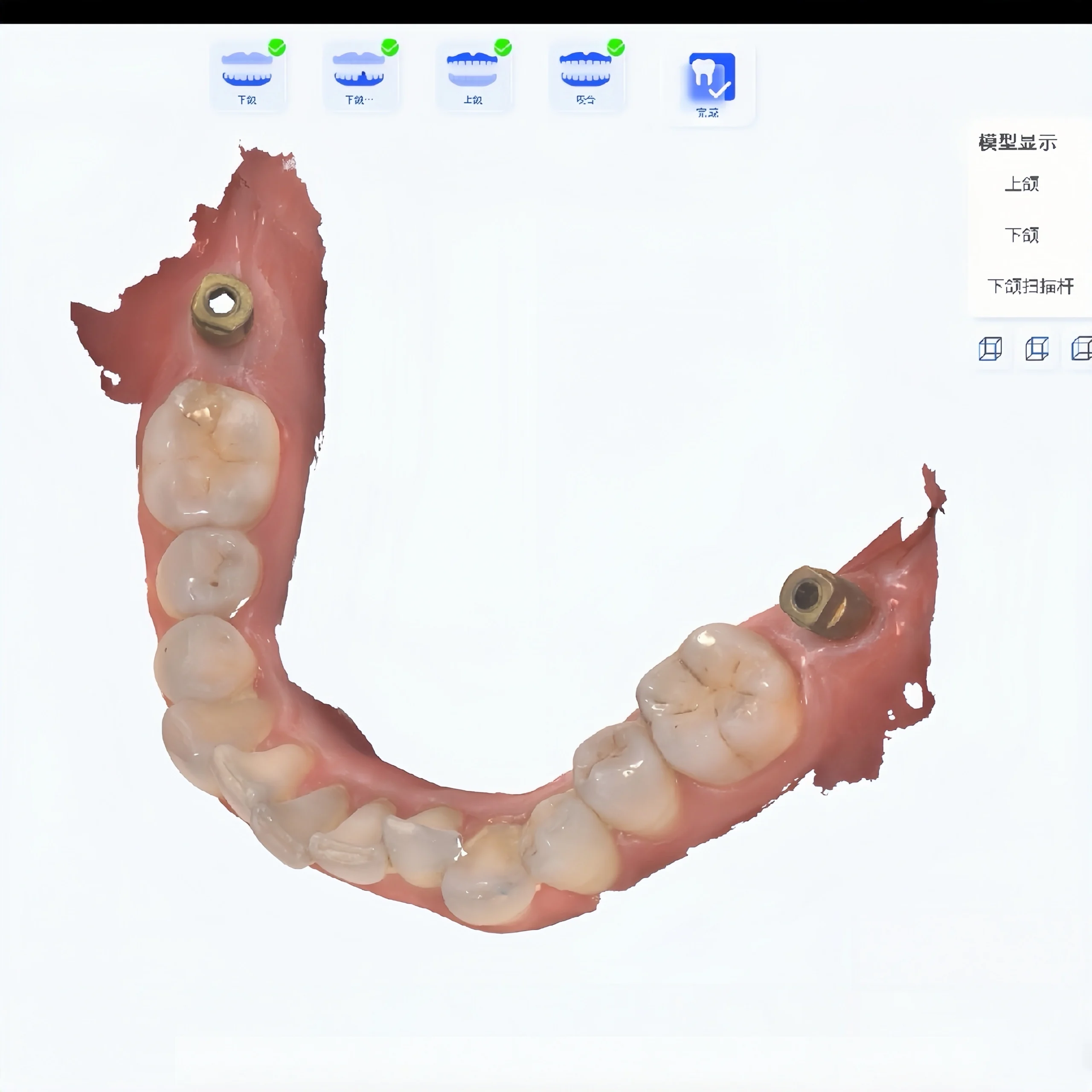

Capture full 3D digital impressions in under 40 seconds with 20μm accuracy—ideal for crowns, aligners, and digital models.

Smart AI Scanning

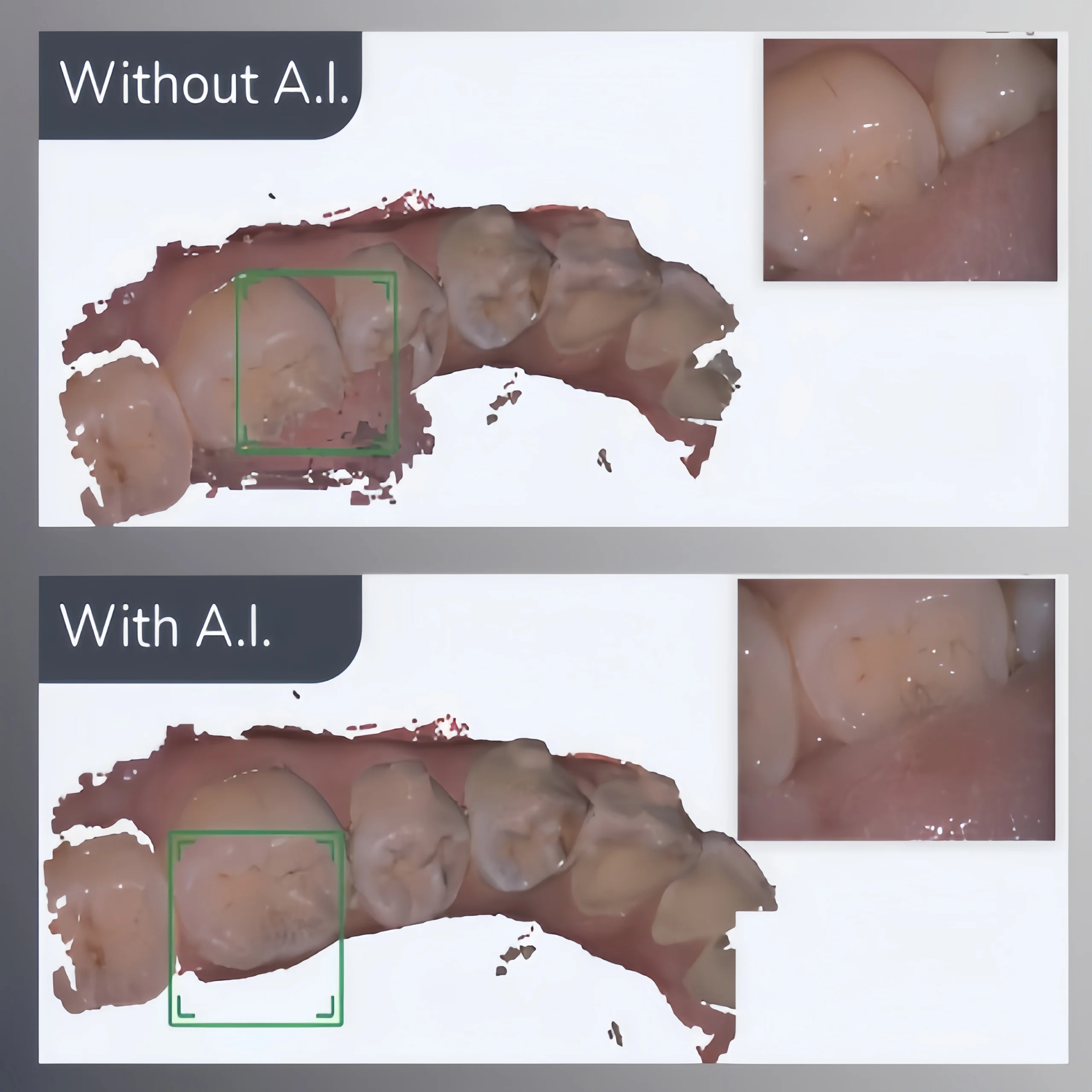

Advanced algorithms automatically remove soft tissue interference (tongue, lips, cheeks), ensuring clean and accurate scan data.

Patient-Centered Design

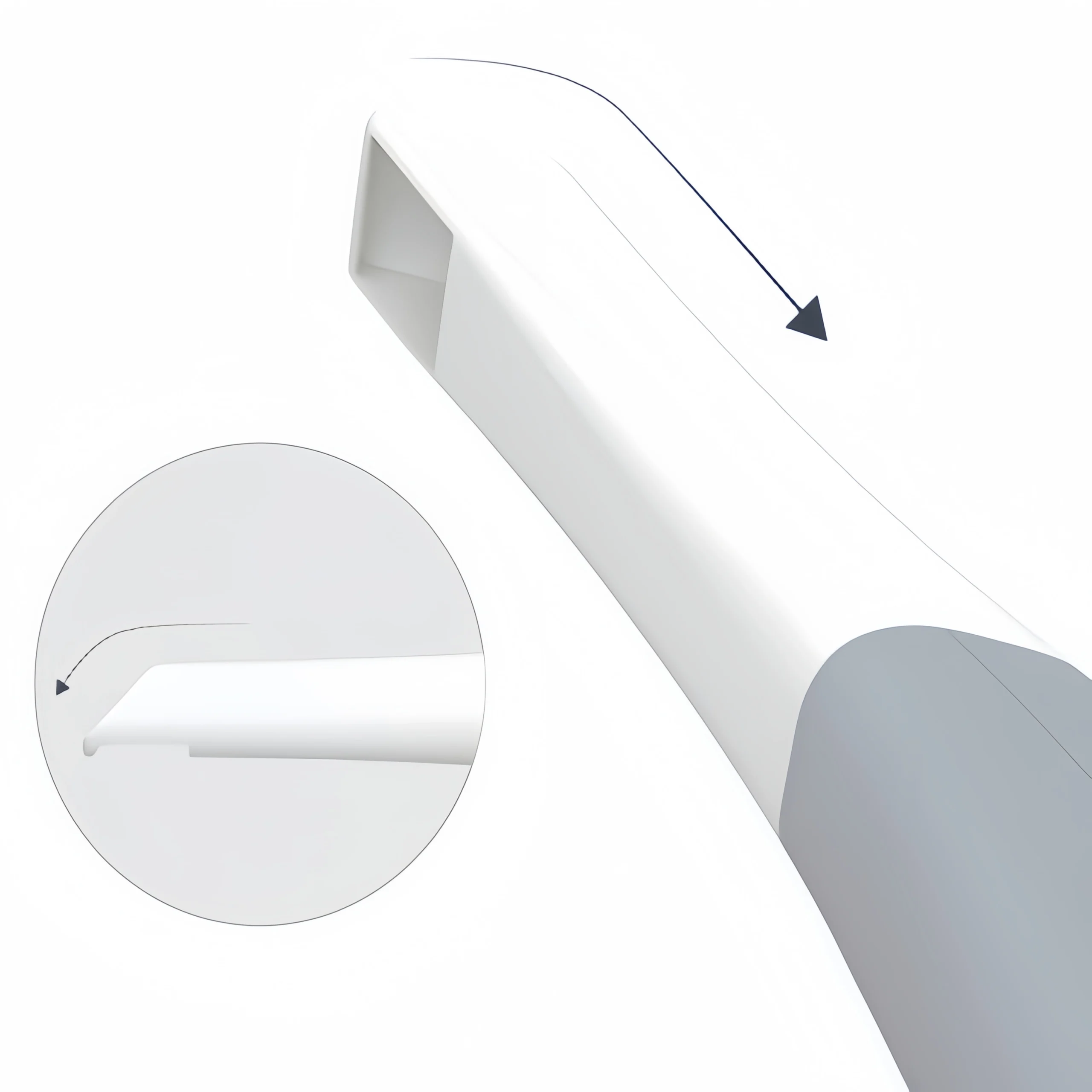

Slim 1.7cm rounded scan tip and instant heating provide a comfortable, gag-free experience from the moment scanning begins. Rotate the view with simple gestures—no touching, more hygiene, and easier operation during procedures.

Fully Open & Seamless Integration

Supports STL, PLY, and OBJ formats, compatible with all major CAD/CAM, milling, and 3D printing systems.

Specifications

iScan S3 Specification
Output Format	STL,PLY,OBJ
Interface	USB 3.0
Accuracy	20μm
Power supply	DC12V 2A
Scan Depth	23mm
Weight	270g
Size	264mm37mm46mm
Tip Size	20mm*17mm
Wireless Scan	No
Cable Wireless Chargre	No
Motion Control	YES
Light Source	LED

Minimum Computer Configuration
Operating System	Windows 10 (64-bit)
CPU	Intel Core i5 1l Gen or above
Memory	16GB
Hard Disc	512G
GPU	NVIDIA RTX 3060 6GB or above
Resolution	1920X1080，60HZ
USB Port	At least two USB 3.0 ports
